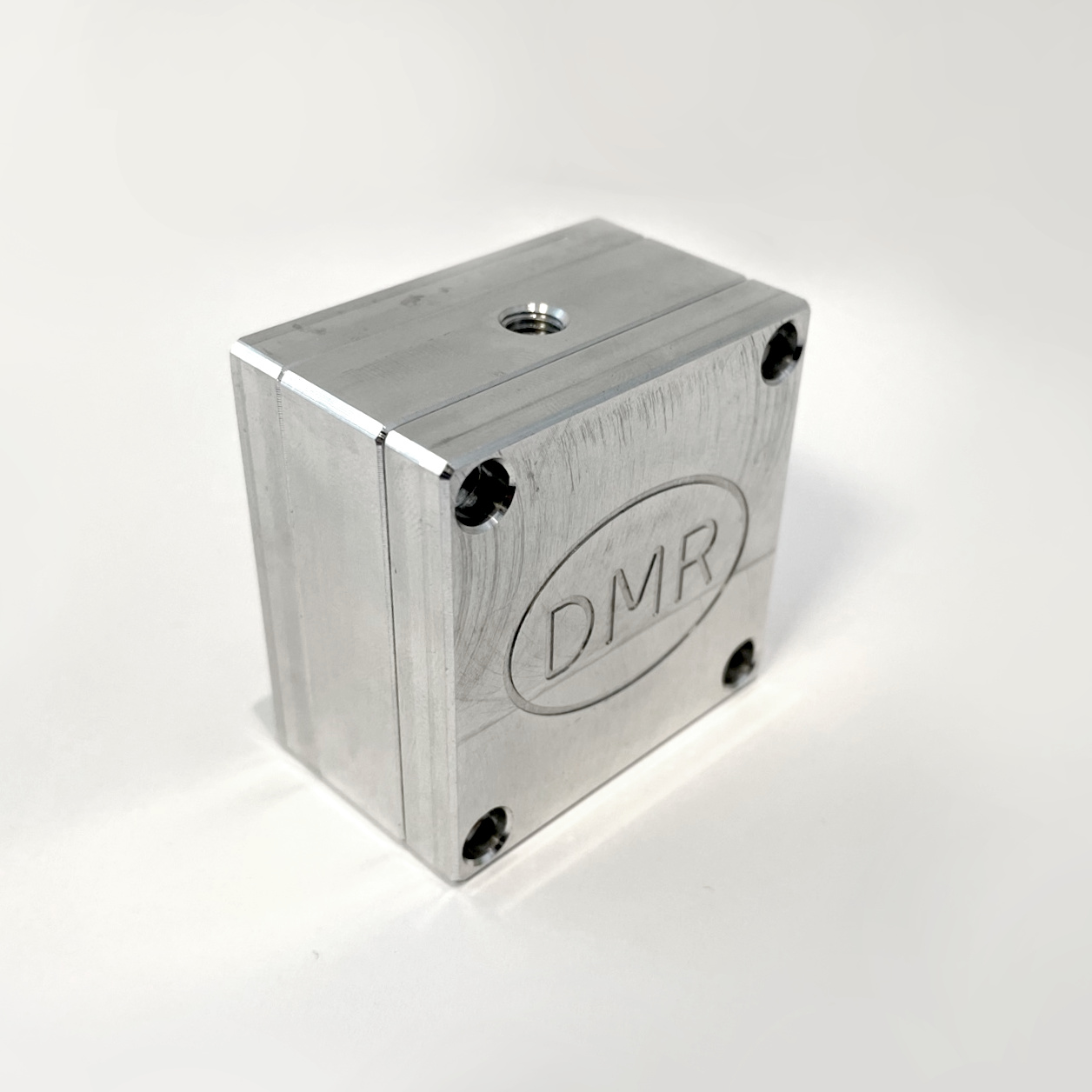

eDNA filter cartridge

Description

This reusable filter cartridge is developed specific for eDNA sampling but can be advantageously used for all needs of filtration. Sterivex filters are widely used for eDNA samples, but by using this filter cartridge, it is possible to choose any filter type with a standard diameter of 47 mm, reducing the cost significantly and increases the flexibility and scope of application. The filter cartridge is easy to disassemble and reuse. Luer lock fittings can be supplied by DMR to use the cartridge as if it were a Sterivex filter. The filter area of the standard Sterivex filter is ten cm2, and the area of the new eDNA filter cartridge is thirty-two cm2 because two filter membranes can be used in the cartridge. This gives a much higher filtration capacity, which is important in most cases. Furthermore, you can choose only to use one of the two filters for analysis and store the other duplicate as a backup or use it for other applications.

Specifications:

•Dimensions: 30x50x50 mm (d X h X l).

•Effective filter area: 32 cm².

•Recommended filtration pressure: 1-4 bar.

•Material of casing: Anodized aluminium.

•Material of filter bed: 3D printed PLA plastic as standard but can be customized for other types).

•Threading of holes for filtered water: M4

•Threading of holes for inlet water: ¼-28.

The unit is as a standard delivered with filter beds of PLA plastics and we can also supply a blind side plane if customers which only to ally one filter in the cartridge.

The unit is as a standard delivered with filter beds of PLA plastics and we can also supply a blind side plane if customers which only to ally one filter in the cartridge.

Standard filter unit:                                                           375 euro.

Blind side plan:                                                                 150 euro.

Standard filter cartridge including an extra blind side plane: 500 euro.

Prices are + VAT.
